The Importance of Voltage Drop and Inductance in Input Chokes

Magnetic and Controls

4/5/2025

How They Protect VFDs from Harmonics and Maximize ROI

Introduction

Variable Frequency Drives (VFDs) are essential in modern industrial applications, offering precise motor control and energy savings. However, they are also susceptible to harmonics, voltage spikes, and electrical noise, which can lead to premature failure and inefficiencies. This is where Input Chokes (AC Line Reactors) come into play, providing critical protection to the VFD and ensuring long-term reliability.

In this blog, we explore the importance of voltage drop and inductance in input chokes, their role in mitigating harmonics, and how businesses can achieve a high Return on Investment (ROI) by safeguarding VFDs with properly selected input chokes.

Understanding Voltage Drop and Inductance in Input Chokes

1. What is Voltage Drop in an Input Choke?

Voltage drop in an input choke refers to the reduction in voltage as the electrical current passes through the inductive coil. This drop is proportional to the impedance of the choke and plays a key role in reducing voltage transients and harmonics entering the VFD.

  • Typical voltage drop values:

    • 1% impedance choke Approx. 2-3V drop

    • 2% impedance choke Approx. 4-5V drop

    • 3-4% impedance choke Approx. 9-10V drop

2. The Role of Inductance in Input Chokes

Inductance (measured in Henrys) is the property of the choke that opposes rapid changes in current. Higher inductance leads to smoother current flow, reducing high-frequency harmonics that can damage the VFD components.

The recommended inductance values for input chokes are designed to:

  • Reduce the rate of current change (di/dt)

  • Filter out harmonic content

  • Improve voltage waveform quality

  • Prevent voltage spikes from reaching the VFD

How Input Chokes Protect VFDs from Harmonics

Harmonics are undesirable electrical frequencies that distort the voltage and current waveform. They are generated by non-linear loads such as VFDs, leading to problems like excessive heating, erratic drive behavior, and reduced motor efficiency.

1. Reduction of Harmonic Distortion

  • Without an Input Choke: Harmonic currents travel back into the power system, affecting other sensitive equipment.

  • With an Input Choke: The impedance of the choke blocks high-frequency harmonics, ensuring a cleaner power supply.

2. Protection from Voltage Spikes and Surges

  • VFDs are prone to voltage transients caused by switching operations and sudden load changes.

  • An input choke absorbs and dampens transient voltages, preventing them from reaching the drive’s power electronics.

3. Improved Power Factor and Efficiency

  • High inductance input chokes improve the power factor by smoothing the current waveform.

  • This results in lower energy losses and reduced demand charges, translating to operational savings.

Calculating ROI: How Input Chokes Maximize Savings in the Long Run

Investing in input chokes for VFD protection provides a high Return on Investment (ROI) by reducing downtime, maintenance costs, and energy consumption. Here's how:

1. Reduction in Drive Failures and Maintenance Costs

  • Without an Input Choke: Unmitigated harmonics and transients cause frequent drive failures.

  • With an Input Choke: The VFD operates in a stable and protected environment, minimizing unplanned breakdowns.

  • ROI Impact: Lower repair and replacement costs for drives and motors.

2. Extended Equipment Lifespan

  • Drives operating under high harmonic conditions have a shorter lifespan due to increased heat and electrical stress.

  • Input chokes reduce stress on VFD components, extending their operational life by 20-30%.

  • ROI Impact: Longer lifespan of VFDs means delayed capital expenditure on replacements.

3. Energy Savings from Reduced Harmonics

  • Harmonics cause inefficiencies that increase energy consumption.

  • Using input chokes lowers these inefficiencies, leading to a reduction in electricity costs.

  • ROI Impact: Energy savings of 3-5% per year, resulting in significant cost reductions over time.

4. Increased System Reliability and Productivity

  • Downtime caused by drive failures disrupts production schedules and leads to financial losses.

  • A well-protected VFD ensures continuous operation and improved process reliability.

  • ROI Impact: Increased production uptime translates to higher revenue generation.

Conclusion: Investing in Input Chokes for a Future-Proof System

Input chokes are a cost-effective solution for ensuring VFD reliability, power quality, and energy efficiency. By controlling voltage drop and inductance, these chokes effectively mitigate harmonics and protect drive systems from unnecessary failures.

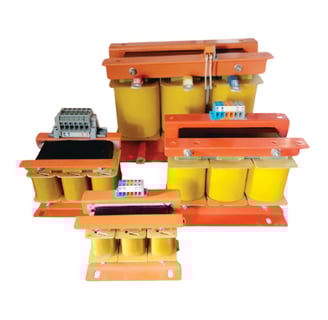

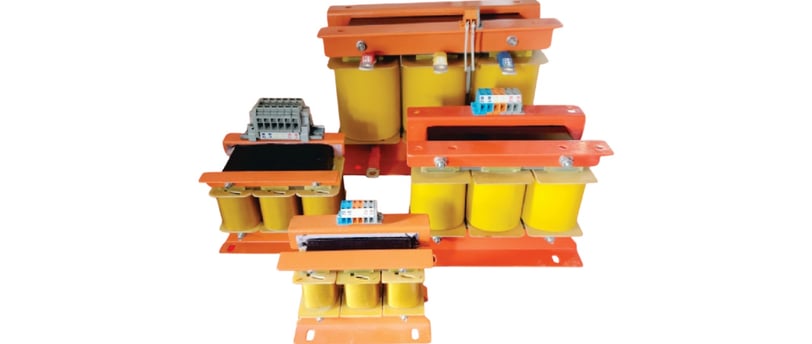

At Magnetic and Controls, we offer a wide range of custom-engineered Drive Input Chokes that provide optimal protection for all drive applications. Our solutions help industries reduce maintenance costs, save energy, and maximize their ROI.
