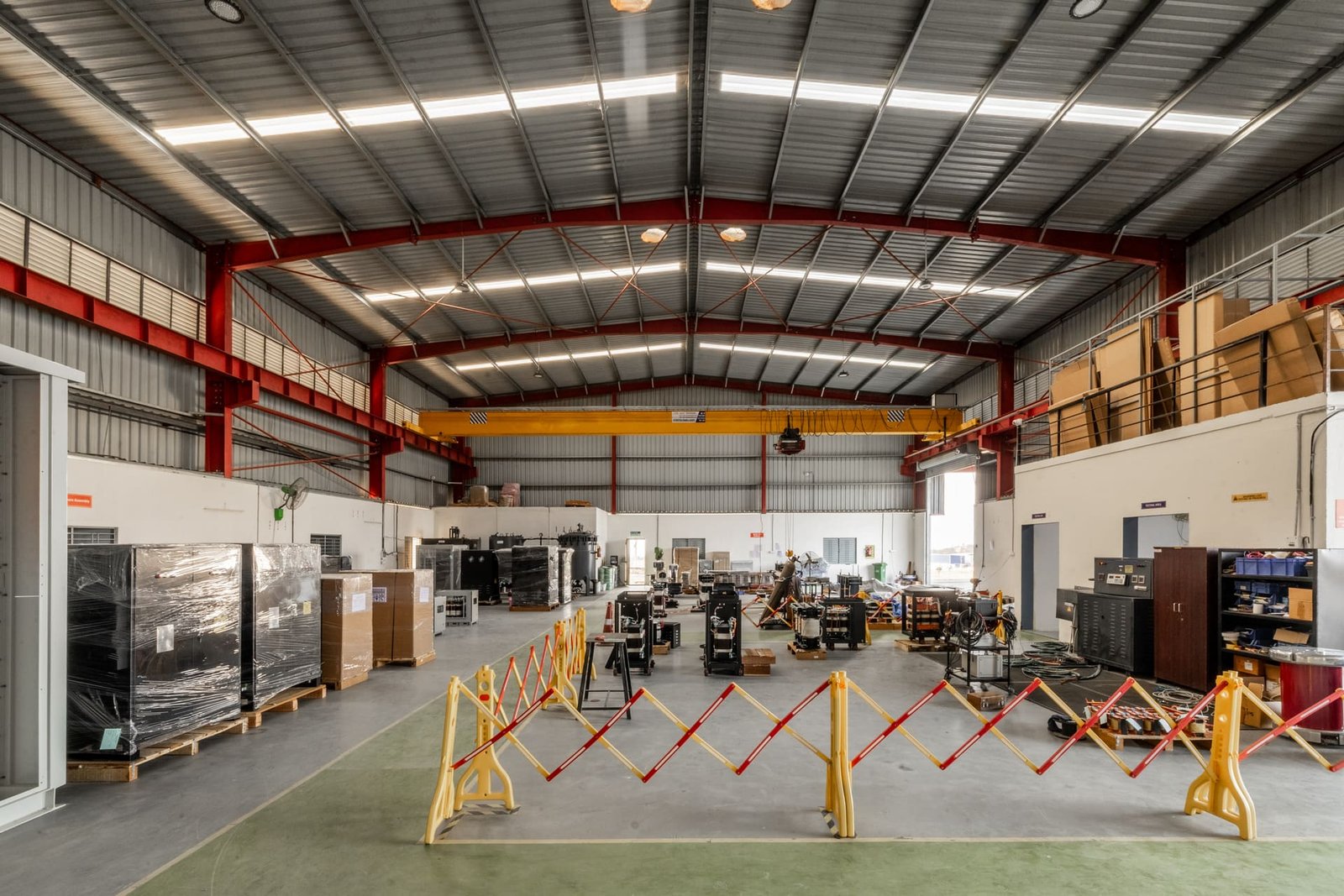

MANUFACTURING AND TESTING FACILITY

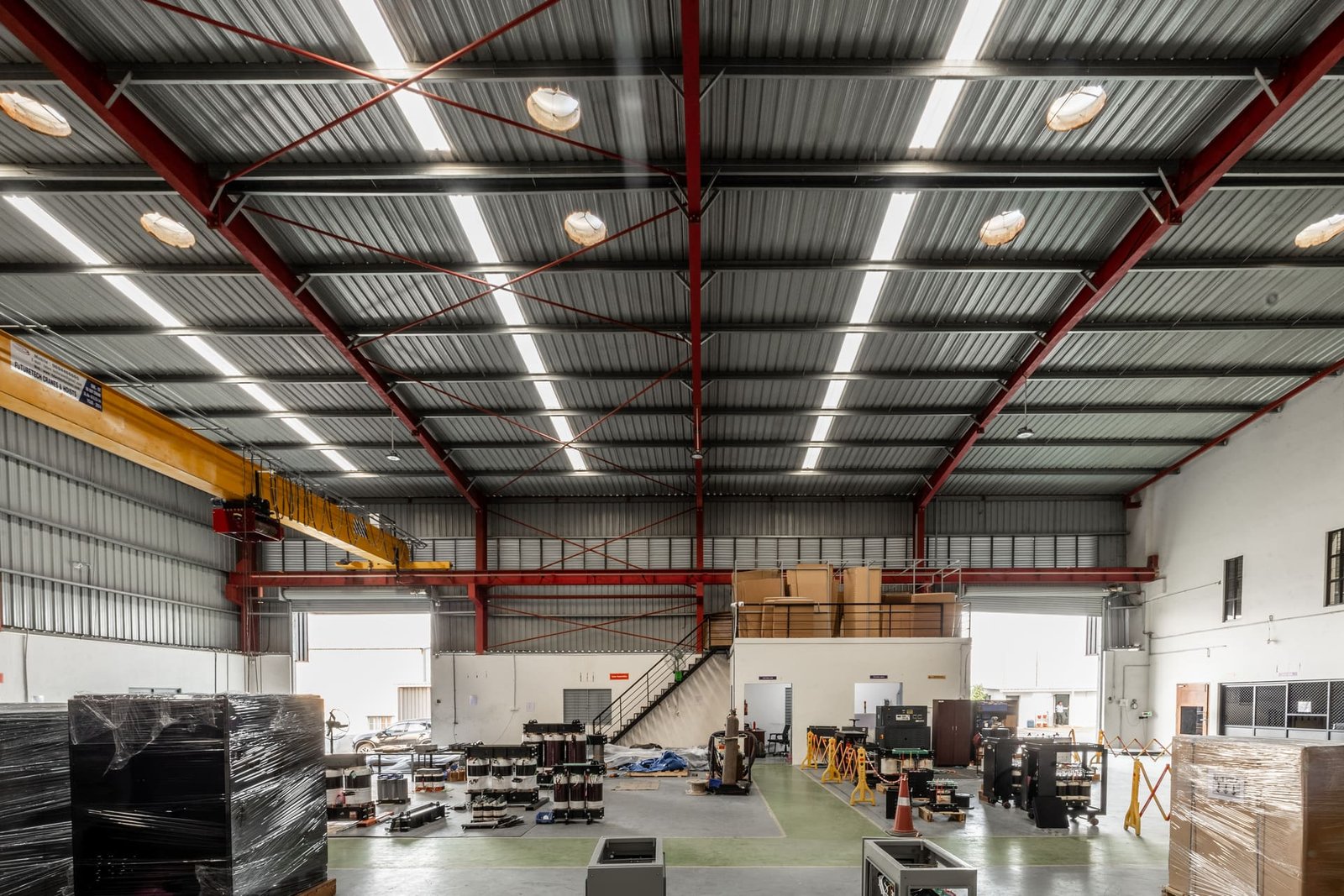

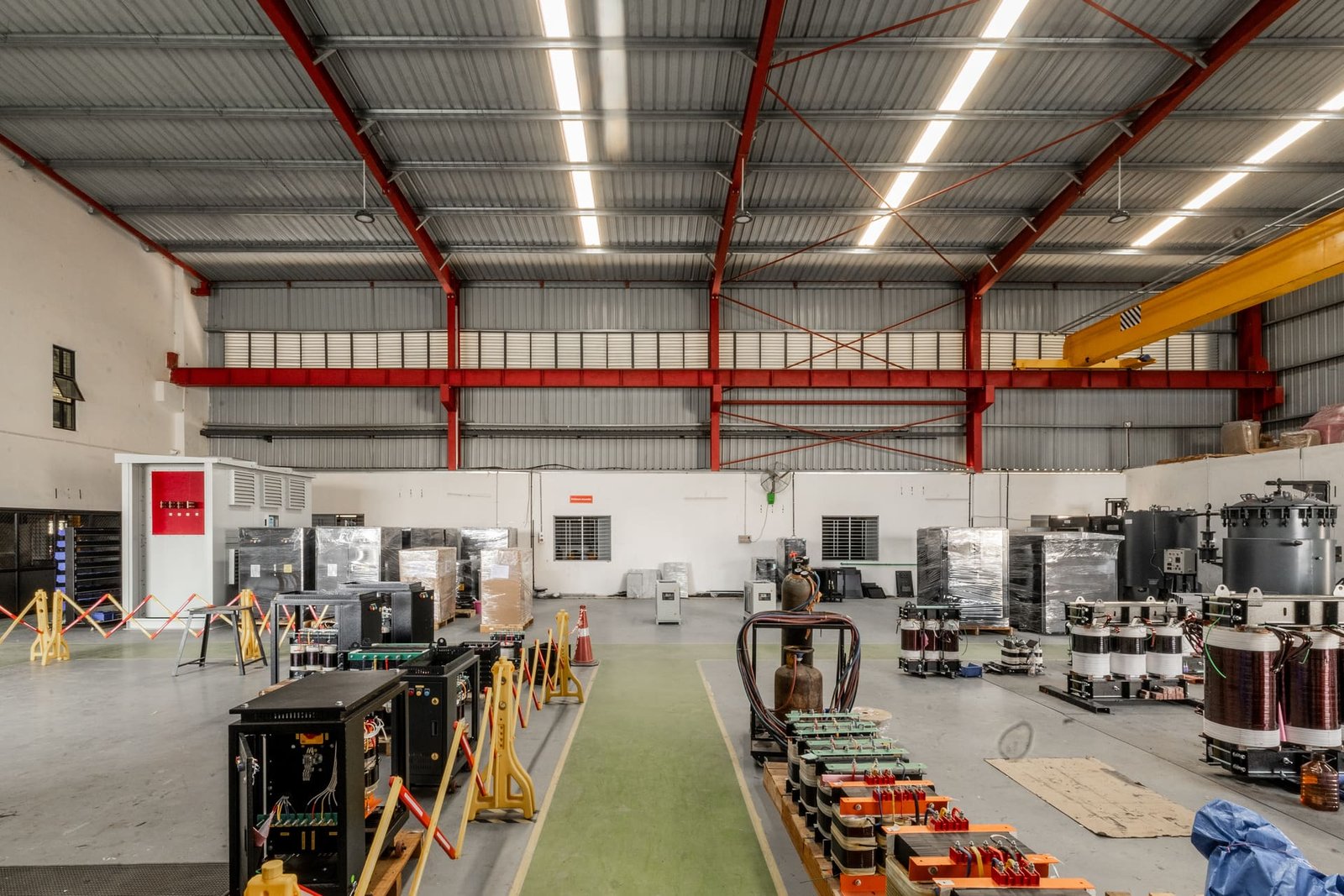

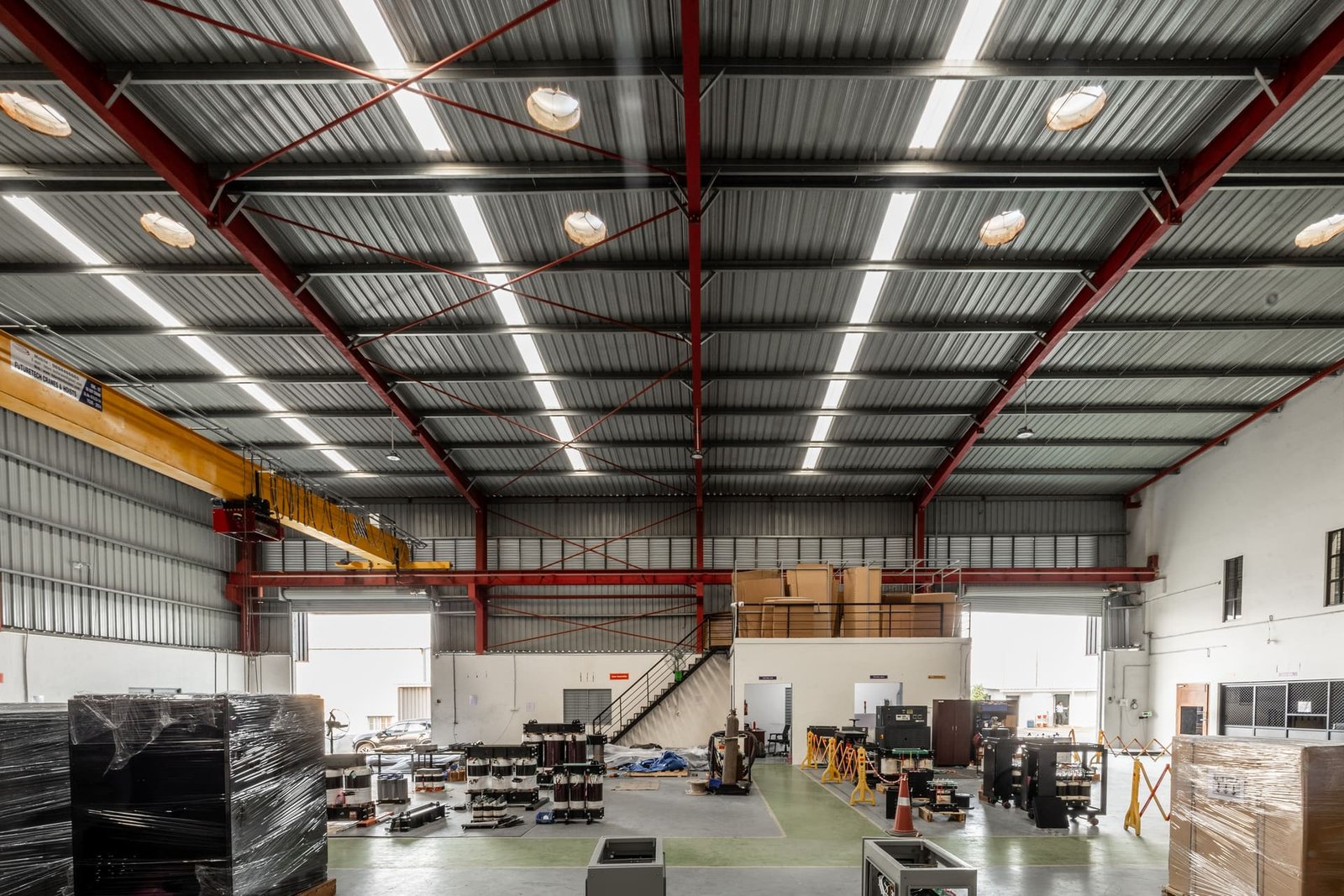

Manufacturing Facility

CORE ASSEMBLY

At Magnetic and Controls, we specialize in manufacturing high-quality transformers, with a particular emphasis on precision-engineered core assemblies. Our core assembly process is meticulously designed to ensure optimal performance, efficiency, and compliance with international standards, including IEC 60076

Precision Cutting

Employing advanced cutting techniques to produce laminations with high dimensional accuracy, ensuring tight joints and reducing gaps that can lead to increased losses.

Core Stacking

Assembling the laminations in a step-lap or full mitre configuration to minimize air gaps, enhance magnetic flux continuity, and reduce noise levels

Material Selection

Utilization of premium Cold Rolled Grain Oriented (CRGO) silicon steel, known for its superior magnetic properties and minimal energy losses

Quality Testing

Conducting rigorous testing procedures, including insulation resistance and core loss measurements, to verify that the core assembly meets design specifications and performance criteria.

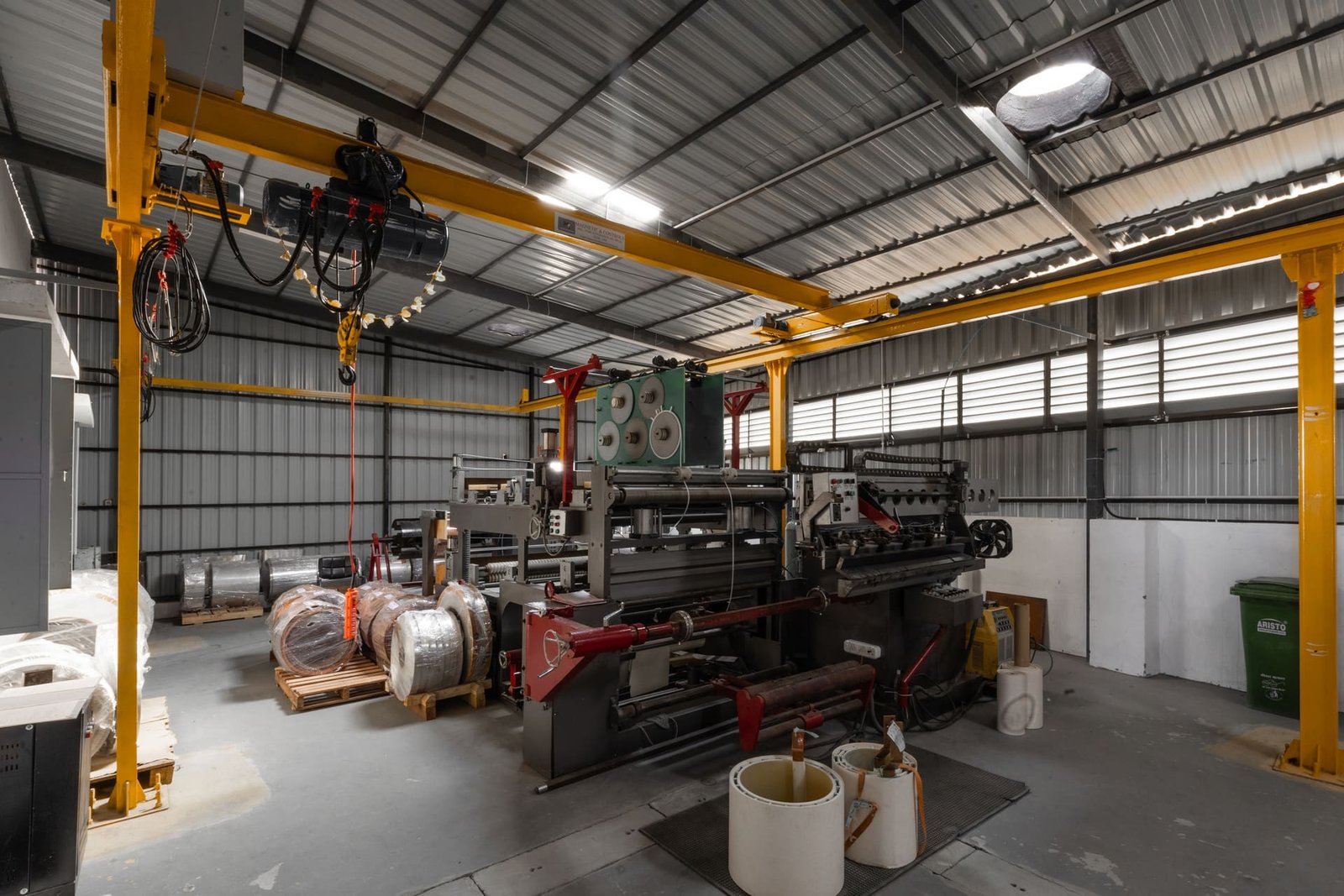

Winding Facilities

Magnetic and Controls – Advanced Winding Facility for Precision and Performance

At Magnetic and Controls, we pride ourselves on our state-of-the-art winding facility, equipped with cutting-edge machinery to ensure precision, reliability, and efficiency in transformer manufacturing. Our advanced infrastructure supports a wide range of winding techniques, enabling us to cater to diverse industrial applications with superior-quality transformers.

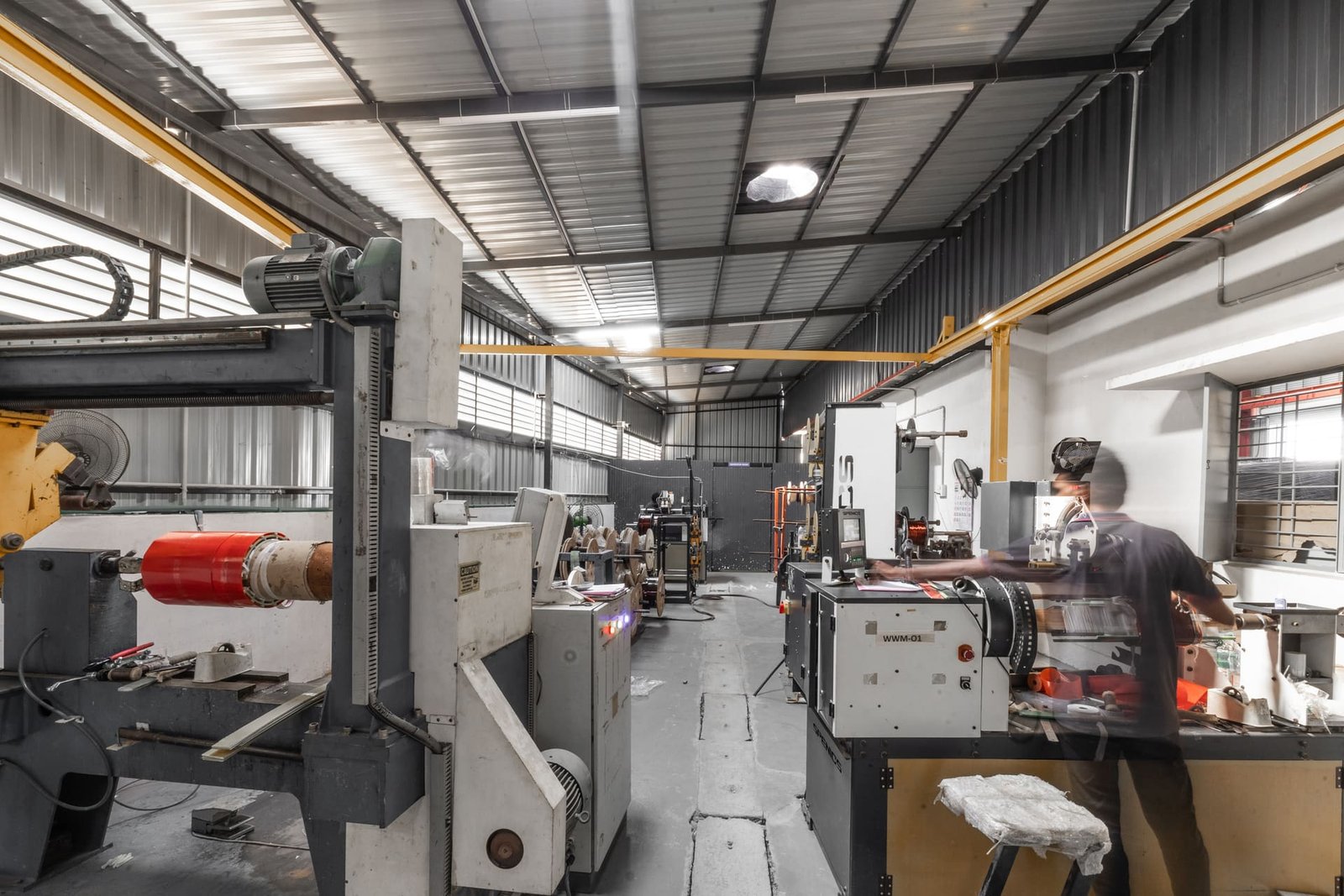

Spenics Automatic Winding Machines

  • High-speed, precision-controlled winding for enhanced coil consistency

  • Automated tension control for uniform winding and reduced material stress

  • Suitable for high-volume production with consistent quality

  • Combines automation with manual adjustments for customized winding solutions

  • Ideal for medium-scale production with flexible winding parameters

  • Ensures superior coil compactness and insulation integrity

  • Designed for high-current applications requiring low impedance and minimal losses

  • Precision-aligned winding for enhanced short-circuit strength

  • Compatible with aluminum and copper foil winding for energy-efficient transformers

Delta Semi-Automatic Winding Machines

Foil Winding Machines

Comprehensive Winding Capabilities

Manufacturing Capability

With our robust infrastructure and technical expertise, Magnetic and Controls offers transformer manufacturing capabilities up to 5 MVA. Our facility is designed to handle diverse transformer configurations, including distribution transformers, isolation transformers, and specialized custom designs for industrial, commercial, and power quality applications.

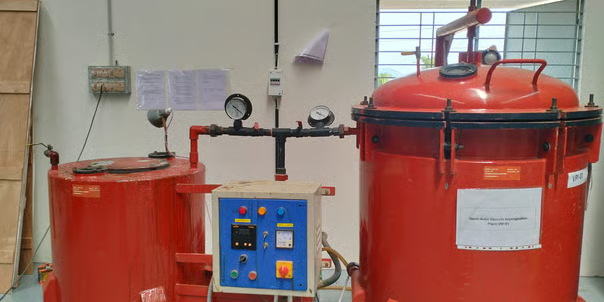

Pressure Impregnation (VPI) Facility

At Magnetic and Controls, we utilize cutting-edge Vacuum Pressure Impregnation (VPI) technology to enhance the durability, insulation, and performance of transformer coils. Our VPI chamber ensures deep resin penetration into the windings, eliminating air pockets and improving dielectric strength, making our transformers highly reliable for demanding applications.

VPI Process at Magnetic and Controls

  1. Pre-Drying & Preparation:

    Coils are carefully dried to remove any residual moisture, ensuring optimal resin absorption.

  2. Vacuum Cycle:

    Coils are placed inside the VPI chamber, where a vacuum is applied to eliminate trapped air and gases within the insulation layers.

  3. Resin Impregnation:

    The chamber is filled with high-quality insulating resin, allowing it to penetrate deep into the coil windings under controlled conditions.

  4. Pressure Application:

    A positive pressure cycle is applied, ensuring uniform resin saturation and bonding within the coil structure.

  5. Curing & Final Processing:

    The impregnated coils are cured in an oven at precise temperatures, solidifying the resin for enhanced mechanical strength and thermal endurance.

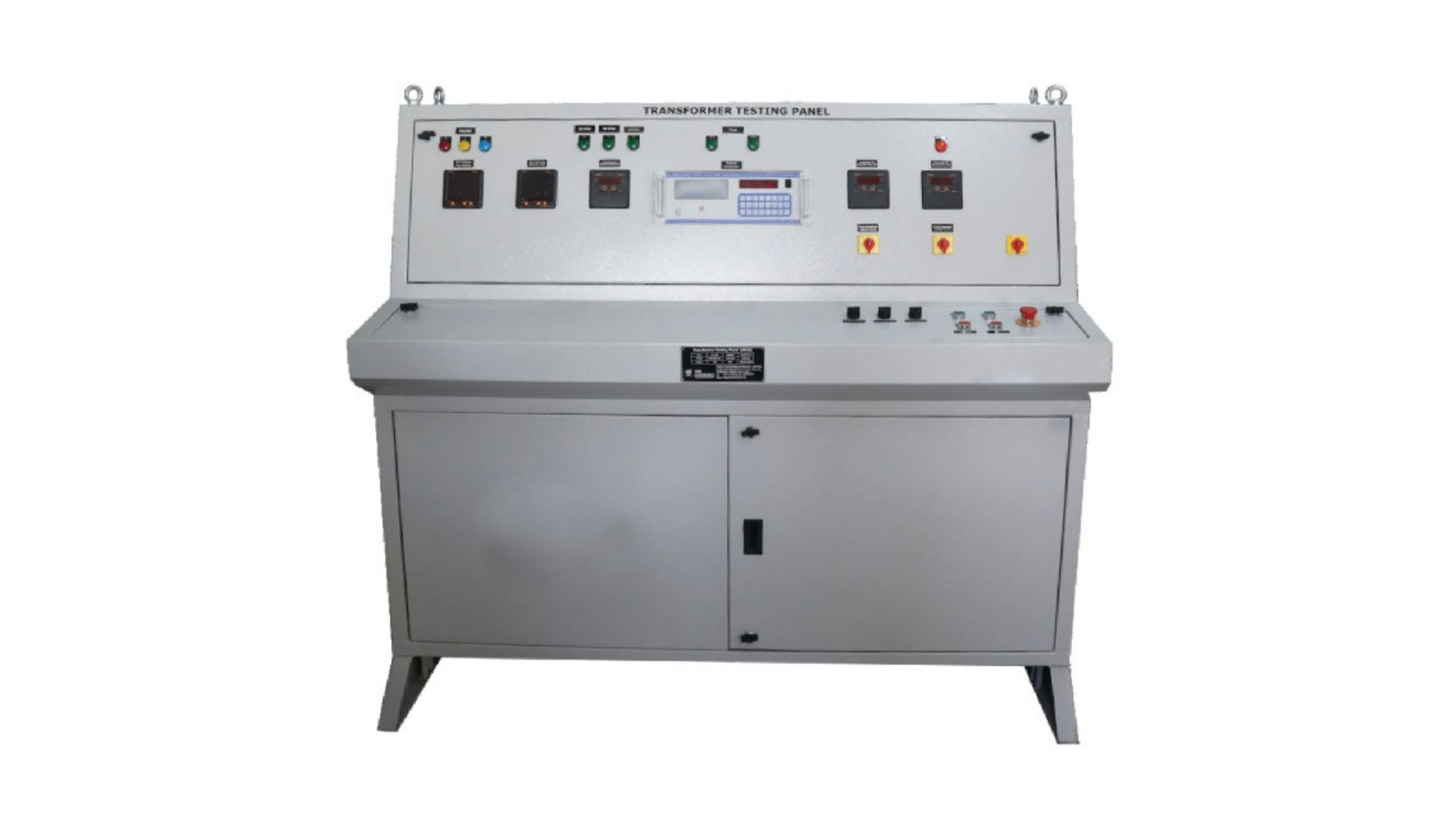

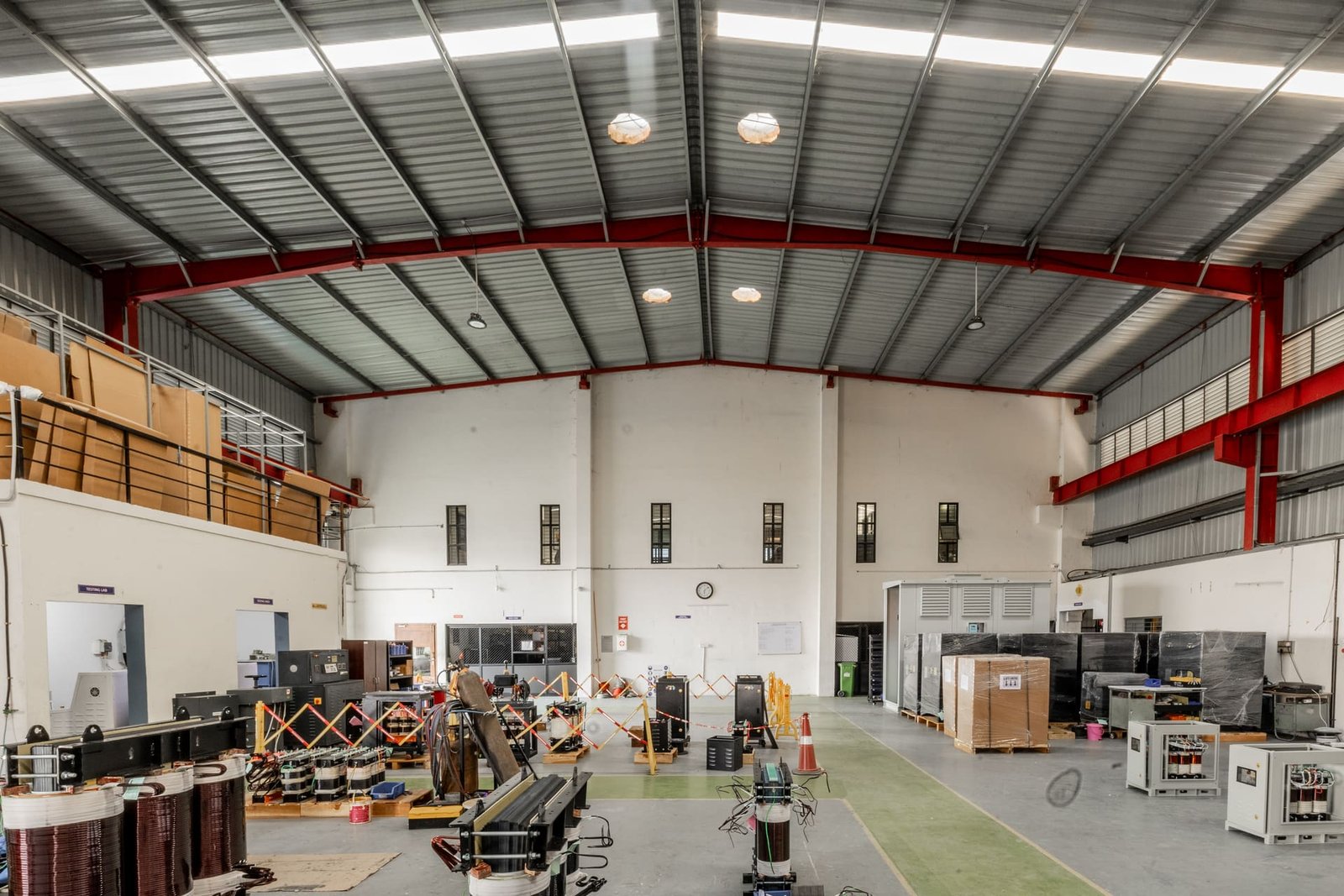

Magnetic and Controls – Comprehensive Transformer Testing Facility

At Magnetic and Controls, we are committed to delivering high-quality transformers that meet the highest industry standards. Our testing facility ensures that every transformer undergoes rigorous quality checks in compliance with IEC 60076 standards, ensuring reliability, efficiency, and long-term performance.

Advanced Testing Capabilities

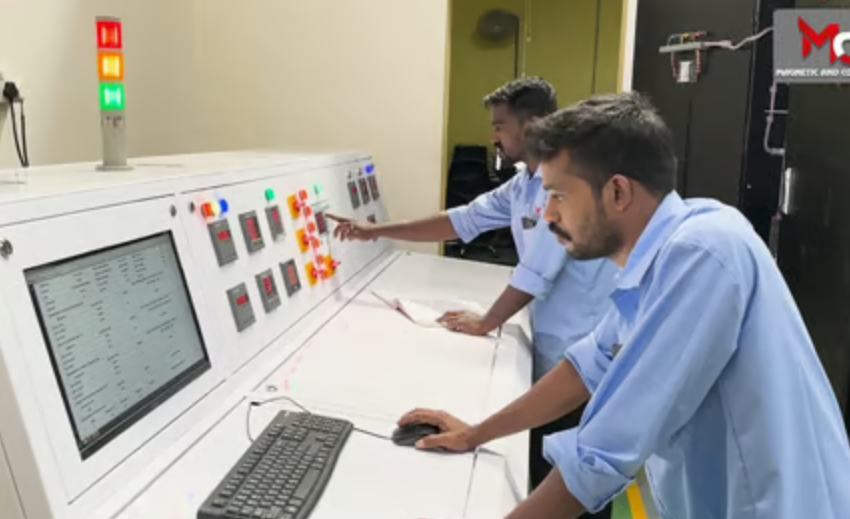

Our dedicated testing facility is equipped with modern instruments and expert personnel to perform a complete range of transformer tests, ensuring adherence to international quality benchmarks.

List of Tests as per IEC 60076 Standards

Routine Tests (Conducted on every transformer before dispatch)

  • Measurement of winding resistance

  • Measurement of voltage ratio and check of phase displacement

  • Measurement of short-circuit impedance and load loss

  • Measurement of no-load loss and current

  • Insulation resistance test

  • Induced overvoltage withstand test

  • Separate-source AC withstand voltage test

Type Tests (Conducted on selected transformers to verify design)

  • Temperature rise test

Special Tests (Conducted as per customer requirements)

  • Short-circuit withstand test

  • Sound level measurement

  • Magnetic Balance test

  • Inrush current test

  • Measurement of Harmonics
