A Critical Factor for UPS Protection and Load Performance

Introduction

Isolation transformers are essential components in power conditioning, UPS systems, and industrial applications, providing electrical isolation and protecting sensitive loads from disturbances. One of the key design parameters of an isolation transformer is impedance, which significantly influences its short-circuit withstanding capacity, efficiency, inrush current, and overall performance.

In this blog, we will explore the critical role impedance plays in transformer operation, how it affects various performance aspects, and why it is a crucial consideration in designing transformers for UPS protection and connected loads.

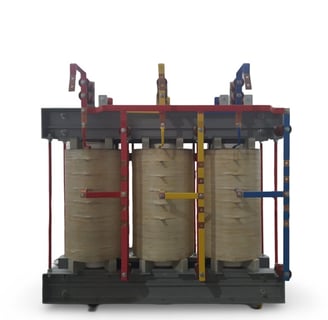

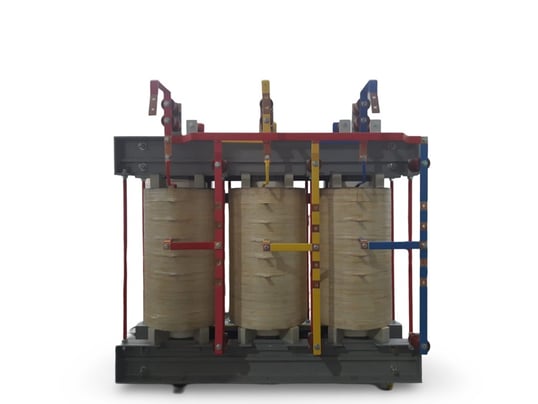

Understanding Impedance in Isolation Transformers

Transformer impedance is the percentage of primary voltage required to circulate full-load current when the secondary is short-circuited. It is typically expressed as a percentage (%Z) and is determined by the transformer's winding resistance, leakage reactance, and core design.

Common impedance values for isolation transformers range from 2% to 6%, depending on the application. Higher or lower impedance levels impact different aspects of performance, as discussed below.

1. Impedance and Short-Circuit Withstanding Capacity

How Impedance Affects Short-Circuit Currents

  • When a short circuit occurs on the secondary side of an isolation transformer, the impedance limits the fault current magnitude.

  • A higher impedance transformer (e.g., 5-6%) restricts the short-circuit current, reducing the risk of severe damage to the transformer and downstream equipment.

  • A lower impedance transformer (e.g., 2-3%) allows higher short-circuit currents, which can stress circuit breakers and fuses.

  • Best Practice: Proper impedance selection ensures the transformer can withstand short circuits while protecting connected loads and circuit breakers from excessive current.

2. Impedance and Efficiency of Isolation Transformers

Balancing Impedance for Optimal Efficiency

  • Transformer efficiency depends on the balance between resistive losses (I²R) and leakage reactance losses.

  • Lower impedance transformers have lower resistance and, therefore, lower energy losses, improving efficiency.

  • Higher impedance transformers have increased leakage reactance, which can lead to greater losses in certain applications.

  • Efficiency Consideration: A well-designed impedance level ensures a transformer minimizes power losses while maintaining sufficient short-circuit protection.

3. Impedance and Inrush Current Control

The Relationship Between Impedance and Inrush Current

  • Inrush current is the initial surge of current when a transformer is first energized.

  • Lower impedance transformers allow higher inrush currents, which can trip protective devices and stress the transformer windings.

  • Higher impedance transformers help dampen the inrush current, ensuring smoother startup and reducing circuit breaker trips.

  • Best Practice: Choosing an optimal impedance value prevents excessive inrush currents while maintaining transformer efficiency.

4. Impedance Considerations for UPS Systems and Load Protection

Why UPS Systems Require Specific Impedance Values

  • Isolation transformers in UPS systems are critical for voltage regulation, harmonic filtration, and load protection.

  • If impedance is too low, excessive current can flow, causing UPS overloads and instability.

  • If impedance is too high, voltage drops across the transformer increase, leading to reduced power quality for connected loads.

  • Design Recommendation: A transformer impedance of 3% to 5% is typically ideal for UPS applications, balancing protection, efficiency, and performance.

Protecting Sensitive Loads with the Right Impedance

  • In medical, IT, and industrial automation applications, sensitive loads require stable voltage and minimal disturbances.

  • Proper impedance selection prevents electrical noise, harmonics, and fluctuations from affecting critical systems.

  • Result: Ensuring a well-balanced impedance enhances reliability and longevity of both the transformer and the connected loads.

Conclusion: Optimizing Impedance for Transformer Performance

Impedance is a crucial factor in the design and performance of isolation transformers. It impacts short-circuit protection, efficiency, inrush current, and UPS compatibility. Choosing the right impedance level ensures optimal transformer performance, enhanced equipment protection, and long-term energy savings.

At Magnetic and Controls, we specialize in designing custom-engineered isolation transformers tailored for UPS systems, industrial automation, and critical power applications. Our transformers are optimized for ideal impedance levels, ensuring efficiency, reliability, and protection for your power systems.
